This digital model and film visualize, for the first time, the entire process of assembling the Ford Model T car. Through a single time-lapse shot of the Ford factory in Highland Park, Michigan, this film follows the assembly of the car from start to finish in 1915. Numerous photos and films from the 1910s and 1920s document auto assembly, but no film from the time tracks the entire car’s assembly from start to finish. There were many types of Model Ts produced, but the specific car shown here is the 1915 Model T Runabout. Watch the film and see as the various car components are hoisted over and bolted into place. Or walk across the factory floor in the virtual reality computer model.
The film’s audio replicates the sounds of Model T production. The accompanying music at start and end is from the 1936 film Modern Times, where comedian Charlie Chaplin parodies Ford’s assembly line production methods.

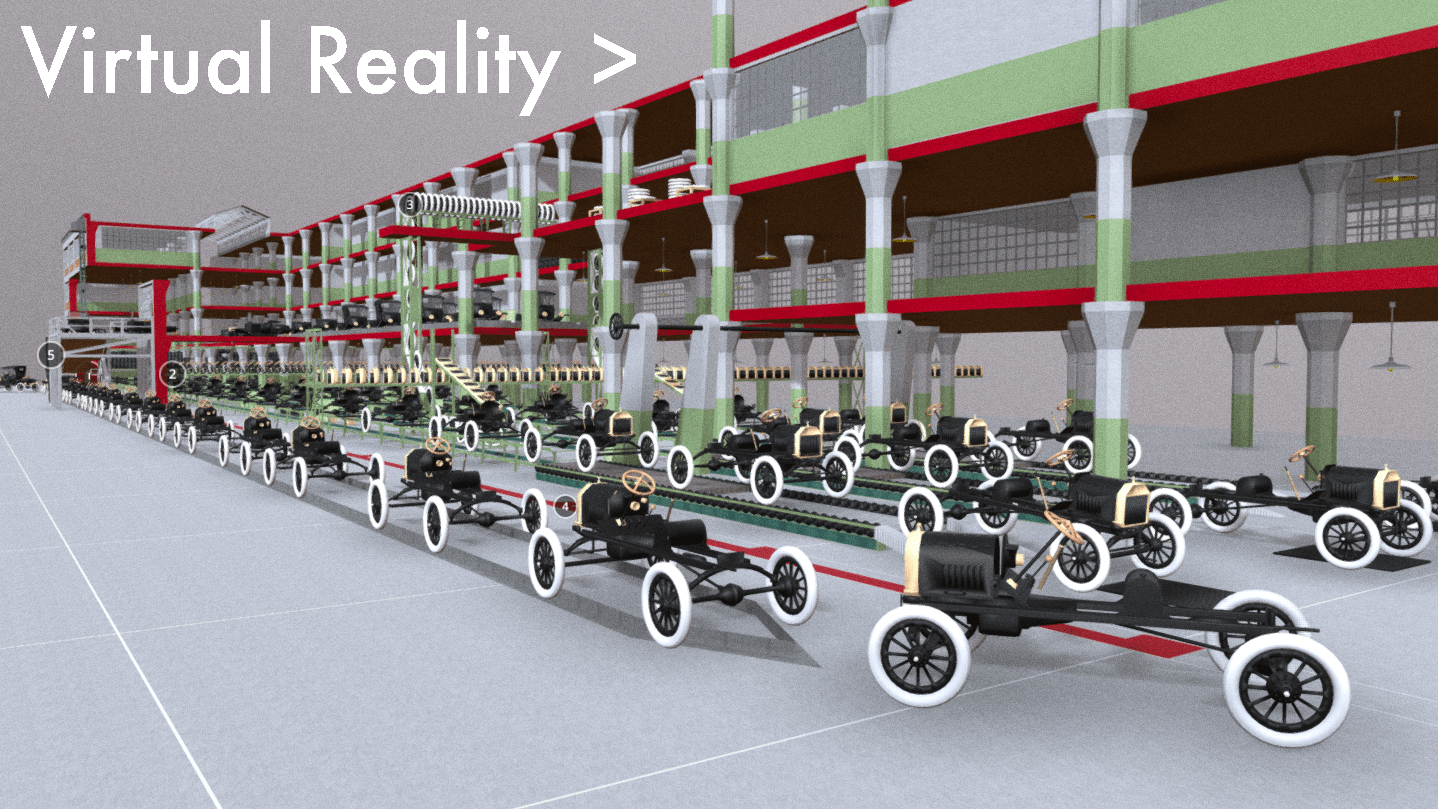

Explore Model T assembly in virtual reality.
Give thirty seconds for browser to load. Link opens in new window.
Henry Ford did not invent the car, nor he did invent the assembly line to produce the car. For years before Ford, cars were being built in small numbers at local workshops. For centuries before Ford, assembly line production was being used to make all manner of goods like pins, fabrics, and steel. Ford was not acting in isolation. When he started out, he was in competition with dozens of other auto manufacturers and hundreds of other moving assembly lines.
Although Ford was not the first, his car and moving assembly line soon became most successful and memorable. After creating his version of the automobile in 1896, Ford moved workshops first to Mack Avenue and later to Piquette Avenue in Detroit. These first two factories were small-scale structures for limited car production. In initial experiments with mass production, Ford’s employees were only able to manufacture a few dozen vehicles per day at most. Only in 1913 at Ford’s third factory at Highland Park did mass production begin on a truly large scale. As shown in this film, Ford applied assembly-line methods throughout the factory to all aspects of car production.
Final Stage of Model T Assembly in Highland Park c.1915, David Kimble’s illustration for National Geographic
Between the first Model T in 1913 and the fifteen millionth in 1927, the car’s appearance did not change significantly. The car chassis, motor, and color-scheme in 1927 were almost identical to 1913. Despite variations in the number of seats and exterior of car, the motor and chassis beneath were consistent and unchanging over time. Henry Ford stubbornly used the same underlying manufacturing methods across vehicle types in order to bring down costs. At Highland Park, he experimented with producing the greatest variety of car types with as few variations as possible to the car’s internal structure and under-the-hood mechanis.
However much Ford resisted changes to his car design, he was always redesigning the factory floor and assembly line to produce the greatest number of cars with the least amount of human labor. In this same period from 1913 to 1927, the Highland Park factory was constantly redesigned and expanded. Few records survive of all changes to the factory.
The 1915 book Ford Methods and the Ford Shops includes detailed plans and photos of the factory at this one point in time. Ford was still tinkering with the assembly line, as Model T production had only just begun a few months earlier. Within a few months of these photos, assembly line methods had improved once again as Ford redesigned the factory floor as shown in this film. Rather than documenting Ford production for all time, this film captures Ford production the way it looked at this snapshot in time.

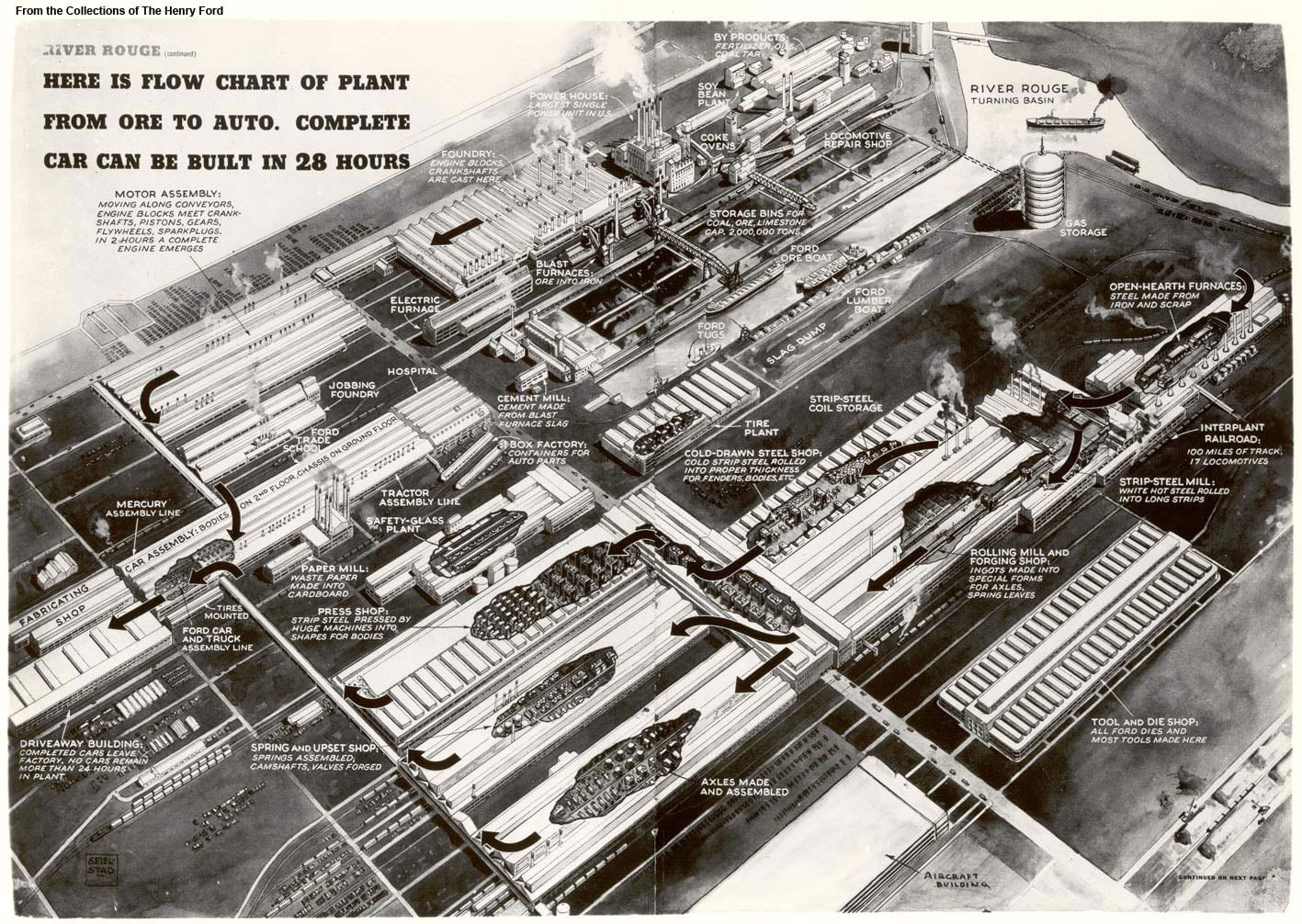

Assembly line flowchart of River Rouge c.1941, showing Ford’s production methods applied to the design of an entire complex. The ideas in embryo at Highland Park become fully visible at River Rouge.
After Ford stopped producing Model Ts in 1927, newer models started production at the new and larger factory at River Rouge, where Ford makes cars to this day. The Highland Park factory switched to producing other goods like tractors and later tanks for WWII. Within a few years, production methods had so quickly improved under Ford that Highland Park became too small and obsolete. The factory was largely demolished, and with its demolition, the initial appearance of Ford’s first and greatest invention was lost for all time: the moving assembly line.
Some of the factory buildings still stand, and the specific part of the factory shown in this film still exists. But the buildings were all cleared of their original machinery. The most impressive part of Ford’s invention was not the factory itself but instead the equipment and processes within that factory that are no longer visible. The buildings themselves were simply functional warehouses designed with large open spaces to allow the easy movement of machinery.
The entire complex covered many acres, and the other factories that supplied the Highland Park factory with materials and components created a web of trade that spanned the globe. Instead of filming the entire process, this film focuses on the final and most important stage of production where finished parts from all over the world and factory complex came together for final testing and assembly.
Sources
Main reference text: Fay Leone Faurote and Horace Lucian Arnold. Ford Methods and the Ford Shops. New York, Engineering Magazine Company: 1915. See esp. Chapter V on “Chassis-Assembling Lines” that includes factory floor plan and photos from pages 131-57. Also see pages 142-150 that describe the 45 steps required for chassis assembly. Link.
Main reference photo: David Kimble. “Exploring the Model T Factory.” Motor1.com. September 1, 2017. Link. Kimble’s image was originally published in June 1987 National Geographic centerfold.
Animation opening image: Postcard of Highland Park in 1917. Link.
Animation opening music: Factory Scene from Modern Times, directed by Charlie Chaplin in 1936. Link.
Model T shown in film can be downloaded as a computer model at this link.
