Demolishing Public Space at New York Penn Station

What does old Penn Station’s loss reflect about the evolution of public space in New York City?

With assistance from Evander Price, recent PhD student in American Studies and chronocriticism at Harvard University. Thanks also to Adam Brondheim for his insights about historic preservation in NYC.

.

Download this essay as a PDF file

.



The old waiting room, [1] once the largest indoor public space in New York City, is now a parking lot. [2]

Demolition crews began hacking away at the limestone walls, stone eagles, and thirty-foot tall Doric columns of old New York Penn Station in October 1963. In a construction industry where architects typically quote projects as lasting eighteen months, the demolition and rebuilding of old Penn Station lasted five years. At its 1910 opening, old Penn Station was the largest and most expensive infrastructure project ever built in New York City. The station’s associated service tunnels stretched 5.5 miles under the Hudson and East River. At 350 feet long and 150 feet high, old Penn Station’s waiting room was the city’s largest internal space. Construction cost $100 million, or $2.7 billion in 2020 adjusted for inflation. By 1963, this was the largest and most expensive structure ever demolished in New York City.[3]
In a 1963 conversation with The New York Times, the developer justified demolition as “putting passengers first” and then clarified: “The outside is the only thing of artistic value as far as I’m concerned. The handling of 200,000 passengers is much more important to me. […] In some areas the land is just too valuable to save anything that doesn’t fully utilize it.”[4] The developer’s aspirations for Penn Station’s replacement, however misguided, were no less monumental in their imagination: to construct a profitable office skyscraper and Manhattan’s largest arena for sporting events and conventions. Office workers and event spectators could move directly from trains to their seats without stepping outside, or engaging with the public space of the city streets.

.

1968 advertisement for the new station [5]

.

“The fact is that the redevelopment of the Pennsylvania Station into a $90 million building complex will transform the area from a static uneconomic burden on the railroad into a viable commercial and recreational center of benefit to the entire West Thirty-fourth Street neighborhood and the public at large.” – Allen J. Greenough, Pennsylvania Railroad President.[6]

.

Architects have long positioned the demolition of monumental old Penn Station as a key moment in the discourse on historical preservation. This was, to quote leading New York City historian Kenneth Jackson, the moment when: “Human beings, myself included, have an unfortunate tendency to appreciate people and things only after they are gone. Pennsylvania Station is the catalyst for the historic preservation movement.”[7] The public realized that even a monument as expensive and permanent as Penn Station could vanish with no mechanism for the public to object. Activists pressured the city government to pass New York’s first ever landmarks preservation law in 1965.[8] Some historians, like Anthony Wood, have posited that the movement toward landmarks preservation began years before Penn Station’s demolition, and that this demolition was not critical in motivating landmarks preservation.[9] Nonetheless, in the following decades, the city protected over 120,000 historic buildings (comprising about 14% of New York City’s built environment).[10]
Less cited and discussed is how Penn Station’s loss parallels a larger late-twentieth-century trend to erode and privatize the commons. The demolition and rebuilding of old Penn Station is a lens to examine the competing tensions of economics vs. aesthetics and private vs. public interests. The demolition and reconstruction of old Penn Station mirrors the larger abandonment of government and corporate responsibility for maintaining and upholding public space.

.

Although Midtown’s largest building in this c.1911 photo, skyscrapers soon surrounded Penn Station.[11]

.

Old Penn Station as public space in a city of private interests

.

In a city symbolic of rational capitalism and industry, old Penn Station spoke of an alternative and idealistic vision for future New York: a city of low-rise buildings and ample public space. The station’s architects McKim, Meade, and White disdained New York’s emerging skyscrapers. They toured Europe in preparation for designing Penn Station. European models of wide and long boulevards framing monumental buildings inspired them, such as the Gare de l’Est in Paris. At the time, the average building in Midtown Manhattan was no higher than six stories, and Penn Station – at over 150 feet tall – would have been among the neighborhood’s highest and largest buildings. For inspiration, the architects copied the main waiting room from Rome’s Baths of Diocletian.[12] This reference is more than aesthetic: Rome’s massive baths were as much functional infrastructure in a city without widespread indoor plumbing as they were civic and social spaces for all people to gather and socialize. By analogy, the Pennsylvania Railroad envisioned its waiting room – which was far larger and cathedral-like than the functional operations of boarding a train demands – as a civic and social space, an urban stage-set for the drama of commuting. Andrew Carnegie, the industrialist turned philanthropist who launched his business career as an employee of the Pennsylvania Railroad, wrote in his 1889 article The Gospel of Wealth: “Surplus wealth should be considered as a sacred trust, to be administered during the lives of its owners, by them as trustees, for the best good of the community in which and from which it had been acquired.”[13]
Old Penn Station operated as public space that belonged to the city at large. Ingrained in a visit to the museum (with an admission fee), the public library (with set hours and borrowing rules), or the church (with a dress code and participation rituals) is the management’s expectations of how one is supposed to behave. The rules of these rarified spaces effectively narrow the social class and types of people who visit museums, libraries, and churches.[14] In contrast, the big city train station has fewer expectations of users. It is open at all times and to all audiences and social classes with effectively no restrictions. Like the restriction-free spaces of Times Square and the public park, the monumental rooms of old Penn Station seemed to belong to everyone. It was one of those unique spaces created entirely through private initiative, but where anyone could assemble in the shared experience of urban life.[15]
However, there was a crucial difference between normal public space and the “public space” of old Penn Station. The station was privately owned and subject to the whims of its owner who, unlike a government official responsible to the public, was duty bound only to company shareholders and employees. The public could use this station and construct it in the collective imagination as belonging to the city and the people, but the public’s use was at the property owner’s discretion. By the 1950s, the Pennsylvania Railroad was losing rail passengers to the increasing popularity of the automobiles, highways, and airlines. The company was bleeding money on old Penn Station’s upkeep to the sum of $3.3 million a year. Although the station’s appearance and location were effectively a public service and an enhancement to civic life for the thousands of commuters, there was no profit to be made from this form of public service.[16] In other words, with no “business model” for the space to pay for its own upkeep, old Penn Station gradually slipped into decay as the walls grew black from decades of soot and deferred maintenance.

.

Erosion of the commons

By the 1960s, the Pennsylvania Railroad’s reasons for maintaining old Penn Station started shifting when they argued that they could only support the commons so long as they did lose anything financially. The now aging and indebted railroad no longer had the “surplus wealth” to think of the public interest and the “good of the community” (to borrow Carnegie’s words). In demolition proposals, the developer clarified that new Penn Station would be financially self-sufficient. Revenue generated from the new offices and arena above ground would support the upkeep of the station below ground, all the while generating surplus income to pay off the railroad’s debt. This is a frequent and often repeated claim among New York City developers: The creation and maintenance of public space must generate some profit. Or if no profit is to be made, the public should compensate the corporation for its gift. Hence, the lead redeveloper is quoted as saying about old Penn Station: “If anybody seriously considered it art, they would have put up some money to save it.”[17]
Old Penn Station had tall ceilings and, with no buildings above, ample natural light illuminated the interior. When the public saw this kind of space, they read it as open and public. When the owners of Penn Station saw this space in the 1960s, they read all this “empty” space as unused air rights. (Air rights refer to the space above a parcel of land that belongs to the property owner.) City law might limit building height to, say, fifteen stories. If the developer only builds a ten story building on a site, he will have five stories of undeveloped air rights. The discourse on air rights presents undeveloped (or underdeveloped) sites as not extracting the full height allowed, and therefore reducing the income that could be generated from the most profitable land use.[18] Thus in the Pennsylvania Railroad’s opinion, a vast and open station, although beautiful, represented undeveloped air rights and a financial loss. In 1910, the powerful railroad was wealthy enough to sacrifice million of dollars on a monument and its annual upkeep. The railroad’s objective in 1910 was more about making a statement about their wealth and importance in shaping New York’s urban landscape. However, when 1960s developers measured the value of Penn Station heritage by its precise cash value instead of its intangible cultural value, preserving heritage started to look unrealistically expensive – not just an annual loss of $3.3 million but a loss of several hundred million dollars over several decades in unrealized profits that could have been pulled “out of thin air” so to speak.[19]
Beyond Penn Station, the larger discourse on the commons was also evolving. In previous decades, buildings like Rockefeller Center devoted almost half of the ground-level areas and many rooftops for public use, even though developers in 1930s New York received no tax benefits or compensation from the city for doing so. Other examples include the numerous early Manhattan skyscrapers whose ornamental appearance and decorative silhouettes enliven the urban landscape, even though more ornament outside does not boost the builder’s bottom line of more rentable office space inside. However, with ever-rising land values, corporations were no longer willing by the 1950s to cede increasingly-valuable private land for public use (or even lower-density development) unless compelled to or compensated for doing so. In response, starting in 1961, New York City developed an increasingly complicated system of tax and building incentives for developers to be “civic” and invest in the commons. Examples include corporate green spaces and plazas. In exchange for setting aside a fraction of their land for public use, the developer is allowed to build higher or larger than the laws would otherwise permit. These resulting spaces are in some ways like the interior of old Penn Station, private space that effectively has the appearance of public. These private-public spaces have opening hours, and often prohibit certain behavior like skateboarding, panhandling, and street music performances. Incidentally, city government approved the greatest number of these privately owned public spaces during the city’s near-bankruptcy in the 1980s, when declining budgets motivated city government to surrender power to the private sector.[20] Politicians today speak of contracting the management of public services to for-profit corporations. Privatized services in many states now include water supply, electricity, highways, immigration services, the military, space exploration (through public-private partnerships) and prisons with companies like the Corrections Corporation of America (recently rebranded “Core Civic” in an Orwellian twist). Capitalism and the profit-driven management of the commons is still seen as somehow purifying, making government more efficient, innovative, and flexible.[21] Penn Station’s demolition is an architectural symbol of the limits of historic preservation law, in particular, and the corporate erosion of the commons, in general.
The state and property owners’ expectations of monumental buildings seem fundamentally different from their expectations of traditional monuments like statues and parks. For instance, it is acceptable for the owner of Grand Central Terminal to think of rentable floor space, or for the redevelopers of the World Trade Center memorial to judge proposals based on how much or little land is set-aside for profitable office towers. By contrast, the land Central Park sits on is most certainly many times more expensive in unrealized air rights than the resale value of the timber that currently occupies the land, but that is beside the point because society does not measure the success or failure of the commons by the income it generates. There was a time a century ago when private investment in shaping civic spaces looked something like old Penn Station, Andrew Carnegie’s donated libraries, or even the New York City subway system’s ornamental mosaics. Even ornate nineteenth-century bank lobbies with imposing neoclassical facades have something “civic” about them and share much in common aesthetically with libraries and museums from the time. If only this kind of benevolent attitude toward the commons could be applied today to all manner of other civic institutions: streets, public markets, subways, or the rebuilt future Penn Station.

.

Future Penn Station?

The demolition and replacement of Penn Station sits at an inflection point in the evolving definition of “public space.” Despite public outcry about the demolition of old Penn Station at the hands of powerful private interests, the current station is not publicly owned or managed. The semi-government entity that acquired all of the Pennsylvania Railroad’s assets after the railroad’s 1970 bankruptcy is Amtrak. At least on paper, and although it has never once turned a profit in its over fifty year existence, Amtrak is listed as a corporation with a CEO, stock, and earnings reports. Disgruntled citizens and preservationists cannot speak to or hold them accountable in the same way they can vote out elected officials. As the Metropolitan Transit Authority and Amtrak are both quasi-private “public-benefit corporations,” their executives are all unelected and political appointees. This creates several degrees of separation between those who manage public space and those who use it. What this means for the public is that the spaces the public might see as being public and shared by all – in this case our national rail network and places like the current Penn Station – are effectively private.[22]

.

Proposal for rebuilding Penn Station across the street as the Moynihan Train Hall [23]

.

There seems to be an innate discomfort among city leaders with the idea of investing in the commons without the intention to make some kind of measurable return on investment. New Penn Station’s current owners collect rent from this station’s commercial tenants, the arena at Madison Square Garden, and companies in the office tower above. However unattractive new Penn Station may be, it is at least profitable, which is exactly as the builders who demolished old Penn Station intended.[24] Following this trend, the half-dozen (and counting) proposals over the years to rebuild Penn Station always included a major element of retail shopping and offices. The rebuilt Moynihan Station next door to Penn Station effectively devotes more room to the operations of shopping concourse than rail travel.[25]
However, what made the old Penn Station so aesthetically pleasing was precisely how the design did not consider retail profit. In the interest of aesthetic effect and having impressively large interior spaces, old Penn Station’s retail was segregated to a half-dozen shallow storefronts in the shopping arcade. The architecture was front and center. Rebuilding new Penn Station would require more than money. More importantly, rebuilding would require rethinking the long-held American assumption that extracting profit is compatible with the commons.

.

Train concourse before and after, from the same camera angle

.

Main entrance to waiting room before and after

.

 Perhaps beneath this asphalt parking lot, fragments of the original waiting room floor remain.

.

Directions for future research

How much will Moynihan Train Hall be an effective replacement to old Penn Station? What will happen to Madison Square Garden arena above Penn Station when its lease expires in 2023? The land and areas below might belong to Amtrak, but the areas above do not. Will the city demolish the arena above to rebuild the station below, or will it renew the lease for another decade? I am curious how these debates will unfold between now and 2023, and how private interests might permit or hinder the public’s rebuilding efforts.
Another research avenue, although beyond monuments and architecture, is to examine alternatives to rebuilding. Currently, rail service to New York City is provided through the Metropolitan Transit Authority, Amtrak, Metro North, NJ Transit, and Long Island Railroad. With little to no inter-agency collaboration, managing the infrastructure becomes needlessly complex and crowded. However, directing arriving trains to alternative stations nearby, which are now owned by different and non-cooperative agencies, could siphon away most of the overcrowding at Penn Station, and therefore make rebuilding easier. The logistical problem causes the design problem.

.

References

[1] Photo credit: Cervin Robinson and Edward Popko (for the Historic American Buildings Survey). Pennsylvania Station, New York County, NY. Retrieved from the Library of Congress: Digital Collections, www.loc.gov/item/ny0411/. Accessed August 6, 2020.

[2] Photo credit: Myles Zhang. “Excavating Old New York Penn Station.” Myles Zhang, July 9, 2020, https://www.myleszhang.org/2020/07/09/penn-station/. Accessed July 26, 2020.

[3] Kenneth Jackson, Lisa Keller, et al. “Penn Station.” In The Encyclopedia of New York City: Second Edition. New Haven. Yale University Press. 2010. Pp. 987-88.

[4] Martin Tolchin. “Demolition Starts At Penn Station; Architects Picket.” The New York Times. October 29, 1963. Pp 1.

[5] Tom Fletcher. “Penn Station.” New York Architecture, http://www.nyc-architecture.com/GON/GON004.htm. Accessed 26 July 2020.

[6] Allen J. Greenough. “Redeveloping Penn Station.” The New York Times (letter). August 23, 1962.

[7] Hilary Ballon. New York’s Pennsylvania Stations. New York. W. W. Norton & Company. 2002.

[8] George Siedel. “Landmarks Preservation after Penn Central.” Real Property, Probate and Trust Journal. Vol. 17, no. 2. 1982. Pp. 340-356.

[9] Anthony Wood. “Chapter One: The Myth of Penn Station.” In Preserving New York: Winning the Right to Protect a City’s Landmarks. New York. Routledge. 2008.

[10] Myles Zhang. “A History of Historic Preservation in New York City.” Myles Zhang, November 4, 2018, https://www.myleszhang.org/2018/11/04/historic-preservation-and-new-york-city/. Accessed August 6, 2020.

[11] Photo credit: Detroit Publishing Company. “Bird’s-eye view, Penn Station, New York City.” Retrieved from the Library of Congress: Digital Collections, https://www.loc.gov/pictures/item/2016812231/. Accessed August 6, 2020.

[12] Ballon. “The Interior Procession.” In New York’s Pennsylvania Stations. Pp. 60-73.

[13] Andrew Carnegie. “The Gospel of Wealth.” New York. Carnegie Corporation of New York. 2017. (Originally published in the North American Review in 1889.)

[14] Nikolaus Pevsner. “Railway stations.” In A History of Buildings Types. Princeton University Press. 1976. Pp. 225-34.

[15] Carroll Meeks. The Railroad Station. New Haven. Yale University Press. 1964.

[16] Ballon. New York’s Pennsylvania Stations. Pp. 93-101.

[17] Martin Tolchin. “Demolition Starts At Penn Station; Architects Picket.” The New York Times. October 29, 1963. Pp 1.

[18] Philip Weinberg. “Critical Areas: Landmarks, Wetlands, Coastline, Flood Plains, and Takings.” In Environmental Law: Cases and Materials Revised 3rd Edition. Lanham, Maryland. University Press of America. 2006. Pp. 98-108.

Personally, I believe the assumption that “air” is a commercial asset to be bought and sold fundamentally undermines the idea in the commons that air, water, and light are owned collectively by society.

[19] Ballon. New York’s Pennsylvania Stations. Pp. 95-96.

[20] “New York City’s Privately Owned Public Spaces.” NYC: Department of City Planning, https://www1.nyc.gov/site/planning/plans/pops/pops.page. Accessed July 26, 2020.

[21] Brett Heinz. “The Politics of Privatization: How Neoliberalism Took Over US Politics.” United for Fair Economy, September 8, 2017, http://www.faireconomy.org/the_politics_of_privatization. Accessed July 26, 2020.

[22] Fawn Johnson, Rachel Roubein, and National Journal. “Amtrak Has a Trust Problem in Congress: Democrats want to give the rail service more money, and Republicans are demanding more accountability.” The Atlantic, May 13, 2015, https://www.theatlantic.com/politics/archive/2015/05/amtrak-has-a-trust-problem-in-congress/456042/. Accessed July 26, 2020.

[23] Photo credit: Dana Schulz. “Cuomo releases new renderings of Moynihan Station as major construction gets underway.” 6sqft, August 17, 2017, https://www.6sqft.com/cuomo-releases-new-renderings-of-moynihan-station-as-major-construction-gets-underway/. Accessed August 6, 2020.

[24] Ballon. “The New Pennsylvania Station.” In New York’s Pennsylvania Stations. Pp. 153-175.

[25] Justin Davidson. “Every Plan to Fix Penn Station Ranked.” New York Magazine: Intelligencer, January 30, 2020, https://nymag.com/intelligencer/2020/01/every-plan-to-fix-penn-station-ranked.html. Accessed July 26, 2020.

Excavating Old New York Penn Station

Also published by Viewing NYC in May 2019

.

“Through Penn Station one entered the city like a god. Perhaps it was really too much. One scuttles in now like a rat.”
– Vincent Scully

.

View of Penn Station from roof of Macy’s department store c.1910

.

“Human beings, myself included, have an unfortunate tendency to appreciate people and things only after they are gone. Pennsylvania Station is the catalyst for the historic preservation movement.”
– Kenneth Jackson

.

.

The accompanying audio is accurate to what the place sounds like from the locations shown. The audio for old Penn Station is my imaginative reconstruction of how the original station might have sounded like, based on recordings from MoMA. My project was also inspired by this 2015 New York Times article about the subtle influence of sound on how we experience urban space: “Penn Station’s low ceilings suppress sound, which becomes hard to make out, an audible metaphor for its rat’s maze of architecture.”



“You feel that your life is being lost in a room where sound dies. We need reverberation.”
– architect Renzo Piano on the design of the current Penn Station

.

.

.

When New York Penn Station opened in 1910, the Pennsylvania Railroad boasted in advertisements that their vast new station was built of travertine marble from the same ancient Italian quarries as the Coliseum and Pantheon. Old Penn Station was rich in the architectural language of Greece and Rome. The façade comprised a colonnade of massive, Doric columns that stretched almost 450-feet end-to-end; it was inspired from temples on the Greek Acropolis. The main waiting room, at 314-feet-long, 109-feet-wide, and 150-feet-high, was modeled on Rome’s Baths of Diocletian. The project was as much an aesthetic gesture to the emerging City Beautiful Movement as it was a political statement: The Pennsylvania Railroad was here to stay, as permanent as the Penn Station it built.
The finished station, however, was an architectural contradiction. The Neoclassical exterior concealed what was, belowground, an extensive and, at-the-time, hyper-modern system of tunnels, electric trains, and communication systems that conveyed millions of people, baggage, and mail from street-level to each of 21 platforms. Aside from the solid stone columns of the main façade, most of the interior was of thin limestone, marble, and plaster sheets mounted on a metal structural frame. The seeming permanence of the stone walls was a cover for the steel frame and modern technology within on which this Neoclassical stage-set rested.

.

.

Just over fifty years later, on October 28, 1963, demolition began. The Pennsylvania Railroad, burdened with debt and aging infrastructure, was selling off its most profitable real estate assets – its land, buildings, and equipment – to stay afloat until it declared bankruptcy by 1970. Through the same two Hudson River tunnels that building materials for the original Penn Station were delivered, some of the same rubble now passed. Much of this rubble was carted off and dumped in the New Jersey Meadowlands adjacent the tracks where commuter trains still pass. The Pennsylvania Railroad used, quite literally, the station’s technology to cannibalize itself, and as the foundations for the new, and current, Penn Station.
Searching for remnants of old Penn Station, I found historic photos from the New York Public Library, Historic American Buildings Survey, and Library of Congress. I returned to the same locations in fall 2019 to re-photograph these images from the identical camera angles. The resulting and visible ghost of the lost Penn Station presents a strong-clear vision of what Penn Station used to be, and by extension, what it could return to, given financial commitment and political will.

.

Train concourse: past and present from the same location

.

The current subterranean warrens represent a clean break from what was here before. As long as Madison Square Garden chokes Penn Station for air and light from above, the current lightless and oppressive Penn Station is here to stay. The current station’s cheap ceilings of corrugated metal, garish electric signage, and exposed concrete floors ironically proved more durable than the Roman marble and limestone of old. The current station is not so fleeting and has, in fact, existed longer on this site than the station before it.
Surprising still is how, for many New Yorkers, it seems inconceivable that the permanent and imposing appearance of the original station could, one day, simply vanish without a trace. This old station is more dream than reality, and it seems almost impossible to imagine the current arrangement as having anything to do with what came before. So little of the original station – and the pride in civic life and New York City this station stood for – remains visible. Interestingly, more of the original architectural fabric survives belowground than meets the eye aboveground.

.

View from corner of 31st Street and 7th Avenue in 1962 and 2019. The structure is unrecognizable aboveground.

.

.

.

.

32nd Street entrance to waiting room in 1962 and 2019
The southeast corner of the still-standing General Post Office is in both frames, in the far left hand distance.

.

.

.

In the five years that demolition and rebuilding lasted (from 1963 to 1968), Penn Station remained in active service. While builders demolished the old station above, commuters continued to pass by on the platforms and corridors below. For this brief moment, the two buildings lived side-by-side, until the present building swallowed almost all visible traces of the past. In spite of this loss, the confusing floor plan of the current Penn Station has much to do with remaining traces of the original. Column for column and void for void, the current Penn Station is built within the fabric of the original. The old Penn Station, completed 1910, had 21 tracks on 11 platforms. The new Penn Station has 21 tracks on 11 platforms. In the demolition process, not one track or platform moved. In the five-year re-construction process, none of the tracks and platforms were moved, and most of the stairs between concourse and track-level survived. This similarity enables us to situate parts of the old structure in relation to the new.

.

Frame of new Penn Station rises simultaneous to the demolition of the old c.1963-68
Passengers in train concourse as new structural frame divides them from the soon-to-be-demolished glass canopy of the old station.

.

Train concourse before and after insertion of the new structural frame, from the same camera angle

.

.

.

The above cross-section of old Penn Station’s waiting room shows the extent of change. The orange line indicates the elevation at ground-level to which the architectural fabric of the old building was demolished. Above this line, nothing of Penn Station survives. Below this line, most of the original structure, tracks, infrastructure, stairwells, and the general contours of the original rooms survive, except now hidden.
After the Roman Empire collapsed, its architectural monuments to empire and power fell into disuse; many were repurposed for more humble and practical purposes. The Coliseum became a stone quarry, the Roman Senate House a humble church, and the Theatre of Marcellus a medieval fortress. New purposes were developed in the shells of old monuments. When a building is reused and altered but still bears visible traces of its earlier form, architectural historians call this creation a palimpsest. A palimpsest is neither of the present nor of the past; it is a mixture of both. For instance, the two square fountains of the 9/11 Memorial in Lower Manhattan mirror the locations of the now-vanished Twin Towers. For a relatively modern and young city in world terms, Penn Station is New York City’s largest palimpsest.

.

Shopping arcade in 1911 and 2019

.

.

View from 7th Avenue shopping arcade into the waiting room in 1911 and 2019

.

“Cutaway illustrating the principle of adaptive reuse.” Drawing by architectural children’s book illustrator, David Macaulay, proposes to discard the “non- functional” spaces of the medieval cathedral by erecting a Styrofoam drop ceiling just above the floor. Everything above – light, soundscape, and ornament is “superfluous” to the cathedral’s function.

The oppressively low ceilings of the current station are the structural division between the public areas belowground and the now private (formerly public) areas aboveground. These ceilings also align to the border between the infrastructure of the original station that survives and the architectural fabric that was lost.
The Pennsylvania Railroad made the decision that made the most economic sense: to keep the infrastructure beneath and merely decapitate the “non-functional” aesthetics of the soaring ceilings and open spaces aboveground. This was valuable land that could be put to more profitable use. Into these empty “air rights,” the corporation could insert Penn Station’s new functions of Madison Square Garden and office towers that would, at last, generate additional income. While exploring the station, I discovered this palimpsest valued the practical and made absolute economic sense: Who needs to enter the city on the scale of a titanic-sized god when humans require spaces no higher than 8-feet-high to pass through?

.

A cathedral with a drop ceiling

.

.

The shopping arcade in 1911 and 2019
Statue of Samuel Rea is in the shadows.

.

President Samuel Rea

The nuances of this palimpsest become clearer from inside. Passengers entering the old station proceeded down a long shopping arcade to the waiting room and platforms. What was once public space is now the private lobby of the commercial offices aboveground. On the right hand side, in the shadows of the private lobby, stands a statue of Samuel Rea, president of the Pennsylvania Railroad. A century ago, Rea stood at the entrance and welcomed passengers and the public; he now stands and watches the corporate clients and office workers. In old Penn Station, an inscription beneath announced his name and title. In the current location, Rea is out of place and has no relationship with his surroundings; the once prominent inscription is almost invisible on the new tablet behind him.

.

Statue of Samuel Rea is in the left hand niche.
Almost stone for stone, the location of the current waiting room escalator mirrors the location of the original.

.

.

Main entrance to waiting room: The left hand niche contains the statue of Alexander Cassatt, Pennsylvania Railroad president during construction.

.

.

The waiting room, once the largest indoor public space in New York City, is now a parking lot.

.

From the street-level arcade, passengers descended into the cavernous waiting room, sunken a few feet belowground. While the room itself is gone, the contours of this room survive in the general footprint of the slightly sunken parking lot that now occupies the site. What was once public space is now private and patrolled by Madison Square Garden security guards who forbade me from standing at this location with my camera.

.

Perhaps, beneath this asphalt parking lot, fragments of the original waiting room floor remain.

.

.

Train Concourse

.

.

Train concourse, past and present.
White cutouts on the drop ceiling mirror the former locations of the demolished skylights hundreds of feet above.

.

.

.

.

.

.

This part of the train concourse is now the VIP entrance for spectators at Madison Square Garden.

.

The design problems with the current Penn Station are similar to those of old Penn Station: too few tracks, too many passengers, confusing circulation, and outdated infrastructure. After all, it is not the engineering and infrastructure that set these two buildings apart, as brick-for-brick and beam-for-beam, the 1960s rebuilding did not generally alter the areas belowground. This early-twentieth-century infrastructure was, after all, designed to handle no more than 200,000 passengers-per-day, and yet now struggles under the burden of 650,000-per-day. Instead, it is the envelope around this infrastructure that was rebuilt in the 1960s, and whose loss the public and historians now mourn.

.

.

At track-level, the railroad ties, location of the third rail, and support columns are largely original to 1910. The columns in the foreground were added in the 1960s to support the weight of Madison Square Garden. The columns in the distance are original to 1910. The 1960s modernist buildings above conceal below what is, in essence, mostly early-twentieth-century infrastructure.

.

View from Track Six

.

Generations of New Yorkers hoped Penn Station would one day be restored with an architectural monument befitting New York City and the Western hemisphere’s busiest train station. In addition to rebuilding the General Post Office next door, other proposals over the years have called for rebuilding Penn Station exactly as it appeared before, or imagining a futuristic Penn Station emerging from the structural shell of the current Madison Square Garden, aptly entitled “Penn Station Palimpsest.” Precedent exists for both proposals. Some post World War II cities rebuilt their monuments and bombed out city centers exactly as they appeared before (such as Dresden and Warsaw), while others incorporated the rubble of the lost buildings into a modern building (such as Coventry Cathedral in England and Kaiser Wilhelm Memorial Church in Berlin). What we miss about old Penn Station was not the infrastructure, operations, or even the building itself, but rather the way this architecture made us feel dignified, and which we feel no longer.

The Vanishing City of Newark

Vanishing City is a visual documentary about architecture and redevelopment in Newark.
I am witness to the frighteningly beautiful decay of my city’s cultural heritage. An abandoned barge slowly sinks in murky waters.  A former factory tumbles before the wrecking ball.  A sea of weeds lays siege to a vacant home. An empty lot is a gaping hole, a missing tooth, in the urban body. As a wall crumbles to the ground, a tree, firmly anchored to the wall, reaches for the sky. While my city’s industrial past slowly succumbs to demolition, new buildings grow from old lots.
Behind this slow decay, there is a hidden beauty in the transient. It is the realization that what was built to last forever will not last. It is the expectation that the destruction of the past could contain the seeds of a better city. The ruin forces the viewer to imagine and reconstruct what was there in ways the restored building does not.
Will the monuments we erect to culture and capitalism endure? The ruins of the Athenian Acropolis became a symbol for democracy. Could the same fate await our society’s equivalent forums, the strip mall, grocery store, and drive-thru? Will we be good ancestors?
My transient urban environment compels me to examine and re-examine my sense of place before it vanishes from memory.

.

.

.

Downtown Newark

.

Newark Broad Street Station

Exhibition Design for the Old Essex County Jail

Developed in collaboration with Newark Landmarks
and the master’s program in historic preservation at Columbia University
Hear my September 2019 interview about this jail and exhibit from Pod & Market.
Read this July 2020 article from Jersey Digs
about the New Jersey Institute of Technology’s proposal to reuse this jail site.

.



.

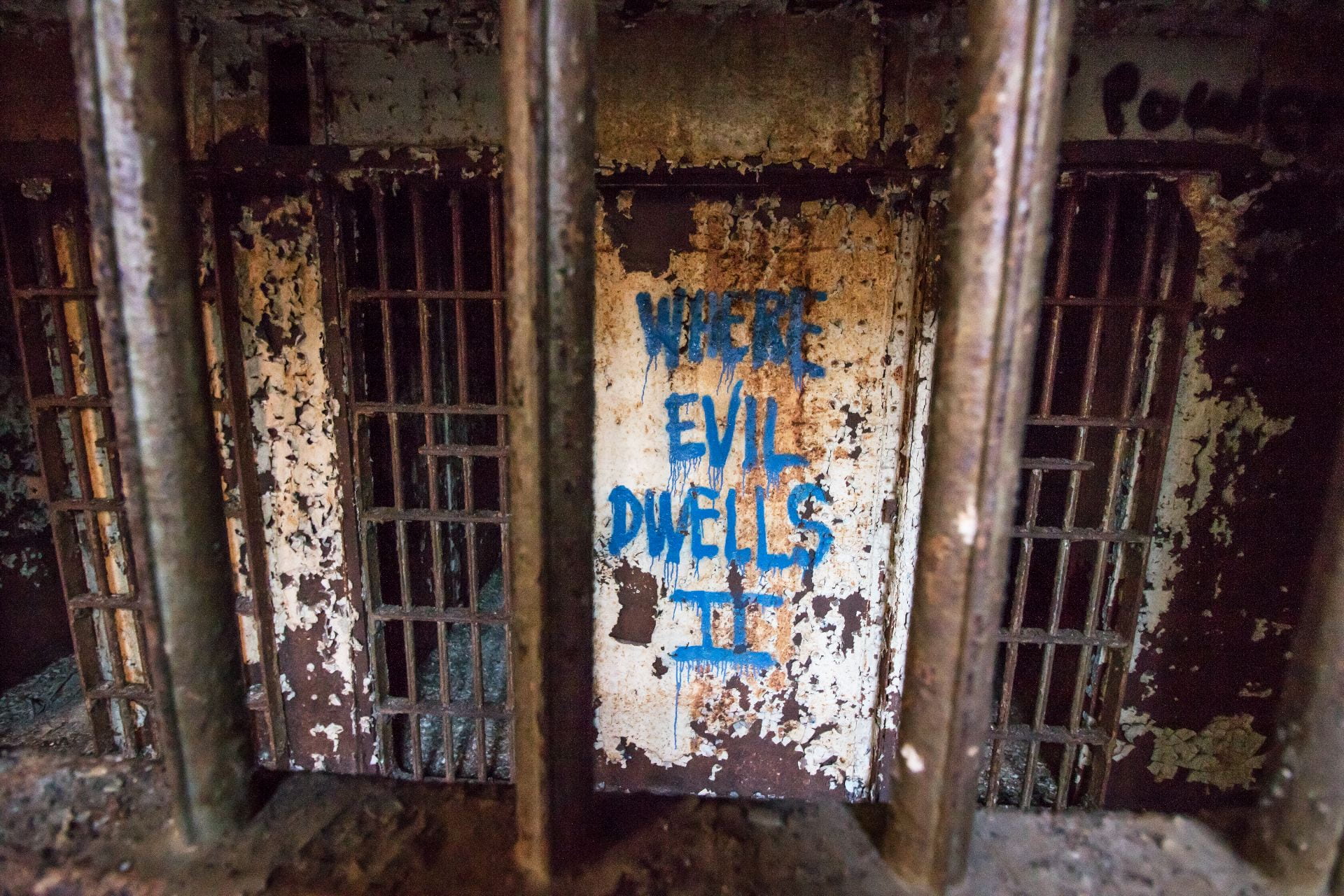

Since 1971, the old Essex County Jail has sat abandoned and decaying in Newark’s University Heights neighborhood. Built beginning in 1837, this is among the oldest government structures in Newark and is on the National Register of Historic Places. The building desperately needs investment and a vision for its transformation. Few structures in this city reflect the history of racial segregation, immigration, and demographic change as well as this jail.
In Spring 2018, a graduate studio at Columbia University’s architecture school documented this structure. Eleven students and two architects documented and explored the jail’s condition, context, and history. They built upon this historical analysis to form preservation strategies. Each student developed a reuse proposal for museum, public park, housing, or prisoner re-entry and education center. By proposing 11 alternatives for a site long abandoned, the project symbolically transformed a narrative of confinement into a story of freedom.
Inspired by this academic project and seeking to share it with a larger audience, Zemin Zhang, Myles Zhang, and Newark Landmarks proposed to transform the results of this studio into an exhibit in the Hahne’s Building. With $15,000 funding from Newark Landmarks, the curators and a dozen collaborators translated Columbia’s work into exhibition. We enriched this exhibit with primary sources and an oral history project, recording the experiences of former guards and people who witnessed this site’s trauma.

.

.

Our curatorial work required translating a strictly academic project into an exhibit with language, graphics, and content accessible to the public. Columbia examined the jail’s architecture and produced numerous measured drawings of this site. While some of these drawings and all eleven reuse proposals are included in the exhibit, the focus shifted away from examining the jail as a work of architecture. Instead, we shifted focus toward the jail’s social history – to use the jail as a tool through which to examine Newark’s history of incarceration. As a result, much of the work required supplementing Columbia’s content with additional primary sources – newspaper clippings, prison records, and an oral history project – that tell the human story behind these bars. Few structures in this city reflect the history of racial segregation, immigration, and demographic change as well as this jail. As a youth in Newark, I frequently explored and painted this jail – I am therefore hoping for its reuse.

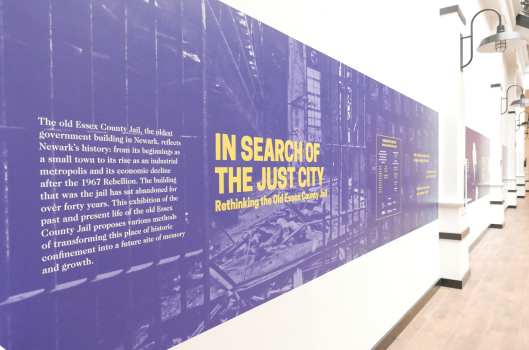

The finished exhibit will be on display from May 15 through September 27, 2019. We are making the case for preserving the buildings on this site and integrating them into the redevelopment of the surrounding – and largely blighted – neighborhood. The hope is that, by presenting this jail’s history in a public space where several thousand people viewed it per week, we can build support for its preservation and raise awareness of the need to stabilize this site. Over the next year, an architecture studio at the New Jersey Institute of Technology: College of Architecture and Design is conducting further site studies. Before any work begins, the next immediate step is to remove all debris, trim destructive foliage, and secure the site from trespassers. These actions will buy time while the city government and the other stakeholders determine the logistics of a full-scale redevelopment effort.

.

Launch Virtual Exhibit Website

.

The Urban Development of Newark: 1660-2016

Audio from Freesound

.

As Newark celebrates the 350th anniversary of its founding in 1666, I created this series of drawings based on historical images and maps. As Newark develops from a small town to a bustling and industrial metropolis, the sounds shift from quiet woodlands to the din of the vibrant city with rising skyscrapers. This two minute time-lapse aims to artistically represent history as a living and fluid process. As Newark looks to the future, it stands on 350 years of history.

.

Newark Metamorphosis

A story of urban change told through picture postcards

.

Developed in collaboration with the Newark Public Library
for a summer 2018 exhibition on the history of Newark’s built environment

.

.

An interactive map and photo project about Newark past and present, 1916 and today
Over the past century, Newark lost much of its architectural heritage and urban fabric. Along with cities like Chicago, Camden, and Detroit, Newark’s built environment evolved in response to population loss, urban renewal, and suburban growth. Explore the changing face of Newark in this interactive map with 150 comparative views of past and present streetscapes.
All historic images in this series are selected from the Newark Public Library’s collection of c.1916 postcards. All new photos were taken in 2016 to commemorate the 350th anniversary of Newark’s 1666 founding. My images capture Newark around 1916, at a moment just before American cities entered the automobile era. Postcards were a medium of communication popular in the early twentieth century. Many postcards feature views of Newark’s important landmarks; others are of mundane street scenes and structures. Through color corrections, careful editing, and marketing, these postcards present a curated and idealized view of Newark as postcard artists, business owners, and city planners desired the city to be remembered.

.

Trouble navigating map? Watch video tutorial below.   |   View all images on a single page.   |   Spot a mistake? Contact Myles.

A city is more than its monuments, skyscrapers, and grand civic architecture. A city is a collection of structures, small and large, wood and stone, humble and grand. Newark has dutifully preserved its large monuments but has not successfully maintained the cultural and urban fabric of its tenements, wood frame houses, warehouses, and single-family homes. Individually, these small-scale structures are seemingly unimportant. Yet collectively, they constitute the living fabric of the city. Too many have been demolished in the name of progress, creating a cityscape radically different from a century ago. For a short video about Newark’s evolving neighborhoods click here.

.

Postcard

Launch map and read essay about urban change.

(Link opens in new window.)

.

Related Projects

Old Essex County Jail
My exhibit on a long-abandoned Newark landmark
Newark Vanishing
A reflection and art project about demolition in Newark
Growing up in Newark
Essay about my childhood experiences in this city

.

Newark, a century after 1916

.

Downtown Newark

Downtown Newark in 1912 and in 2016. Note how the building at right, under construction in 1912, is now abandoned in 2016.

.

In the turn of the century view of downtown Newark, one sees the architectural styles popular at the time: stone and granite victorian and gothic structures. At left, is Prudential’s old headquarters demolished in 1956. At left, is Newark’s central post office. Unlike today, the postal service was central to the functioning of society and was often the most important structure in a town. This post office happens to be in the Romanesque Style popular in the 1880s. After the post office outgrew this structure and moved elsewhere in 1934, the structure was soon demolished in the 1940s to 1950s to construct an unimpressive dollar store. All buildings in this image are currently demolished.

Prudential Insurance headquarters (left) and the City Post Office (right) c.1916. Both now demolished.

.

Prince Street

Prince Street in 1916 and 2016. The complete and total loss of a neighborhood.

.

Drawing by Winsor McCary, which first appeared in a 1928 article "Newark 58 Years from Today"- when Newark would be 150 years from the year of its 1836 incorporation as a city.

Drawing by Winsor McCary from a 1928 article “Newark 58 Years from Today” shows an impossibly futuristic city that never came to be.

.

Launch map and read essay about urban change.

(Link opens in new window.)

Murphy Varnish Lofts in Newark

Murphy Varnish, built in 1886, is one of Newark’s oldest factories still standing. Its elegant brick walls, terracotta ornament, and detailed brickwork reflect a time when industrial structures were more than just functional. Murphy Varnish reflects a time when industry was central to Newark’s wealth and key to its future success. It is a monument to industry and beauty, built to last (and landmarked since 1979 by the National Park Service). Recent renovation efforts promise to turn this derelict structure into a community of apartments.
The summer after my first year at Columbia University, I had the privilege of working with the Studio for Urban Architecture & Design (SUAD), the architects hired to redevelop this derelict factory into about forty residential units. During my time at SUAD, I observed firsthand the workings of a small architecture firm and the inspiring conversion of an old factory into something viable and living. As my internship neared its end, I photographed the historic factory and created a detailed watercolor drawing of the finished renovation.Murphy Varnish B&W
During these three months, I learned that architecture is more than the creation of art and beauty for their own sake, but it is a tool to build a stronger city through improving the built environment. For decades, Newark has seen architecture that does not value aesthetics or connect with the city’s rich history. Prefab, cookie-cutter homes are often built here, but they are out of place and context. These kinds of projects are set back from the street with little more than driveways and vinyl siding for decoration. Large corporate monoliths rise in the downtown; through catwalks and perimeter fences, their occupants need not engage with the city. Every morning and every evening, they can ride to and from Newark without setting foot outdoors or on city soil. Even for historic preservation, much of the city’s old architecture was lost to parking lots, urban renewal, and urban blight.
In this context, Murphy Varnish is an exceptional outlier. In a city once home to thousands of small factories, Murphy Varnish is one of the few that remain. Old Newark maps show dozens of large factories surrounding Murphy Varnish. In the past few decades, almost all of these industrial structures were demolished and replaced with empty lots and low-quality prefab homes. Now, Murphy Varnish stands alone in a largely residential neighborhood; it is a unique reminder of history. Renovation is certainly more difficult, but it is far more respectful of the city’s history.
As I begin my second year of college, I return to campus with renewed appreciation for historic preservation. I return with deeper admiration for the tireless efforts of Newark activists and architects to preserve the city’s rich architectural heritage for future generations.
This project was made possible by a generous grant from Columbia’s Center for Career Education.

.

Murphy Varnish before Work Began

.

.

A Work in Progress

.

The Finished Conversion



Watercolor rendering of completed project

Say no to Edison ParkFast!

Newark’s parking and land use crisis

.

Edison ParkFast, among several Newark institutions such as Rutgers and the New Jersey Institute of Technology, engaged in the systematic destruction of our city’s heritage. In the James Street Commons Historic District, for instance, Edison ParkFast and Rutgers are the single largest contributors to demolition of historic properties from 1978 to the present. Both demolished dozens of historic Newark homes and factories. As Edison ParkFast continues to consolidate its properties into ever larger parcels, the question arises: How will this entity develop this land? Will future development respect old Newark and our history?
Too often, the name of progress is invoked to justify the destruction of old. New development, from Newark’s $200 million sports arena to Prudential’s $400 million new headquarters on Broad Street, reveal that our new architecture is often out of time, place, and scale. Not often enough do Newark leaders realize that progress is only attained by using the past as the literal building block for redevelopment efforts. One can walk through Brooklyn or preserved parts of Manhattan and compare those historic streetscapes to Newark. Newark once had the types and varieties of architecture that Brooklyn still does, but Newark happened to follow the short-sighted path of demolition.
Click here for interactive map of Newark past and present.
Below is a speech I gave before the Newark City Council on 19 May 2016 in protest to Edison’s environmentally unfriendly business practices.

.



Good evening ladies and gentlemen of the Newark City Council.
My name is Myles. I am a proud, lifelong Newarker.
Newark is a city surrounded by asphalt.
To the south lies our port and airport, comprising 1/3 of Newark’s land area. Our airport handles 40 million passengers a year. Our port handles over a million containers of cargo a year. Both pollute our air.
Our city is surrounded by highways: Route 78 to the South, The Parkway to the West, Route 280 to the North, and McCarter Highway to the East. Millions of car travel these congested highways every year.
Our urban core is buried in asphalt. Thousands of commuters per day. Millions of cars per year.
Edison Parking is beneficiary of this pollution. Their 60 thousand parking spots are valued in the billions. They make millions on the land of buildings they demolished often illegally. They pay no water bills; their water runs off their lots and into our sewer mains. For a company so wealthy; they contribute little to the health of our city.
One in four Newark children have asthma, far above the national average. Chances are that your children or the friends of your children also have asthma.
I, too, have asthma. Always had. Always will.
Enough is enough. It is time to develop our city sustainably. Public transportation. Public bike lanes. Public parks. Sustainable infrastructure.
Edison Parking is not a sustainable corporation. When our zoning board approves of the illegal demolition of our historic architecture, they are complacent in this violation of our law. When our zoning board sits silently as Edison Parking uses our lands for non-permissible zoning use, they are not upholding the laws they are subject to.
It is time to change. You, as our elected officials, are in a position to enact the change your public needs. You, as informed citizens of Newark, are responsible for holding corporations accountable to our laws.
This is not a question of complex ethics or morality. It is a matter of common sense. Edison Parking has and continues to demolish our heritage, pollute our air, and violate our laws. Edison parking is breaking its responsibility to the public. Will you hold them accountable?
Please consider the city you want for our children and our future.
Thank you.

.

Comparative views of Downtown Newark, past and present

These views compare Downtown Newark in the 1960s and today. This hints at the kind of human scale, architectural fabric demolished for surface parking.

.

Pictures of Newark

.

As a lifelong citizen of Newark, I spent much of the past few years painting and photographing my changing city. Pictures features a selection of my work, complemented by classical music. Five of Modest Mussorgsky’s pieces from his composition Pictures at an Exhibition are selected, each of which represents the feel of a certain part of Newark. The following five locations are featured:
1. THE PASSAIC RIVER – music: Mussorgsky’s Promenade
2. OLD ESSEX COUNTY JAIL – music: With the Dead in the Language of Death
3. MOUNT PLEASANT CEMETERY – music: Promenade
4. DOWNTOWN NEWARK – music: Mozart’s Death March (k 453a)
5. PORT NEWARK – music: Promenade
Growing up in Newark, I am inspired and saddened by the inner city. I am inspired by Newark’s hope of renewal after decades of white flight, under-investment, and urban neglect. I am saddened by the loss of my city’s historic architecture and urban fabric to the wrecking ball of what is called progress.
Curious about the history of the old Essex County Jail? Explore this interactive exhibit.



.

 Featured work from this film

Urban Garden in Newark

By Myles and Maia Zhang

.

In time, we wil wind our way and rediscover the role of architecture and man-made forms in creating a new civilized landscape. It is essentially a question of rediscovering symbols and believing in them once again. […] Out of a ruin a new symbol emerges, and a landscape finds form and comes alive.
– John Brinckerhoff Jackson, A Sense of Place, A Sense of Time (1994)
.
In the past 60 years, my home city of Newark, NJ has lost 40% of its population and nearly 50% of its buildings.
The timely and needed development of Newark’s land is prevented through a combination of flawed government policy, economic downturns, risk-averse landowners, and lax enforcement of land use laws. As a result, hundreds of acres of prime urban land remain undeveloped as vacant parking lots. There are over 300 acres of paved, surface parking lots in my neighborhood (link to interactive parking map). This sub-optimal and low-density land use has consequences for city government (undeveloped lands are taxed less), housing (Newark has a shortage of quality affordable housing), and the environment. American cities are, perhaps, unique in the world for how much they are designed for and around the car.
One of the largest of these vacant lands was formerly an electric factory and has sat empty for nearly 40 years — 25 years as a decaying warehouse and 15 more years as wasteland filled with yellow crabgrass and decomposing trash. For five years, rusting demolition equipment and a towering pile of brick, steel, and construction debris moldered in the center of the lot — visible to the millions of commuters who pass this site yearly, watching day by day as the building gradually deteriorated into a wall of weeds.
Then our family decided to experiment with ways to bring a semblance of new life to this tired soil: a garden. But our proposal to cover this raw earth in spring flowers was denied by the site’s owner, who was afraid community access would weaken his ownership stake as an absentee landlord. Undeterred, on a quiet weekend with few commuters passing by, we slipped behind the barbed wire fence to silently sow under the smiling sun. The wondrous flower mixture danced out of the plastic seeder, humming a soothing rhythm. Thanks to more nourishing rain, hope germinated from the infant seeds. Soon, sprouts began popping up hesitantly. At first, the green shoots looked no different from the weeds, but with time they grew taller and flowers bloomed — clover, sunflowers, daisies, and Queen Anne’s Lace. Where once commuters walked pass, now they would stop and take photos of our work, with the city skyline rising in background.
Every June, the sanitation workers come with their oily machines and sweaty equipment to level the land of the flowers we secretly planted. With hatchets, they destroy the flowering fruits of our labor and re-expose the rubble strewn dirt. With chainsaws, they chop down the trees that sprout from the chain-link fence. And they leave the mauled flowers and trees strewn on the ground where they fall. Over the following weeks, the flowers and leaves dry in the hot sun and return to the dusty earth tones of the dirt from which they sprang. However, each new year, the flowers return more resilient than before, and with more numerous and larger blossoms. In earlier years, the seeds’ return required our help and gentle watering. These days, they return unaided, attracting the occasional bird. And so the cycle repeats… “Where flowers bloom, so does hope.”

.

Learn more about this project on GoFundMe.
Read more about Newark’s urban decay.
This project was also featured in the spring 2018 edition of Sine Theta magazine.
.

Westinghouse demolition

.

Westinghouse demolition near Newark Broad Street Station

.

.

The chimney falls

.

Newark Broad Street Station

.

Now an urban garden

.
