Oxford University in a Box



.

.

This is a paper architectural model of the University of Oxford. The model folds out of a re-purposed, antique leather box measuring 7 by 14 inches with a depth of only 1.5 inches.

One half of the model features the historic university buildings: The Radcliffe Camera, Bodleian Library, Sheldonian Theatre, Church of Saint Virgin the Mary, and the Clarendon Building. The other half features the campus of Saint Catherine’s College.

This model is made from paper cutouts, measured and folded to form the shape of various buildings. Below is the image of one of these cutouts before assembly, and the groundplan of the campus before the paper buildings were mounted on cardboard.

.

.

This model in a suitcase will be a souvenir of my study abroad experience. Below is a view of this model with my hand for scale. Attaining this amount of precision in so small a model is difficult, but it is possible. This model represents about two weeks (or 100 hours) labor.

.

.

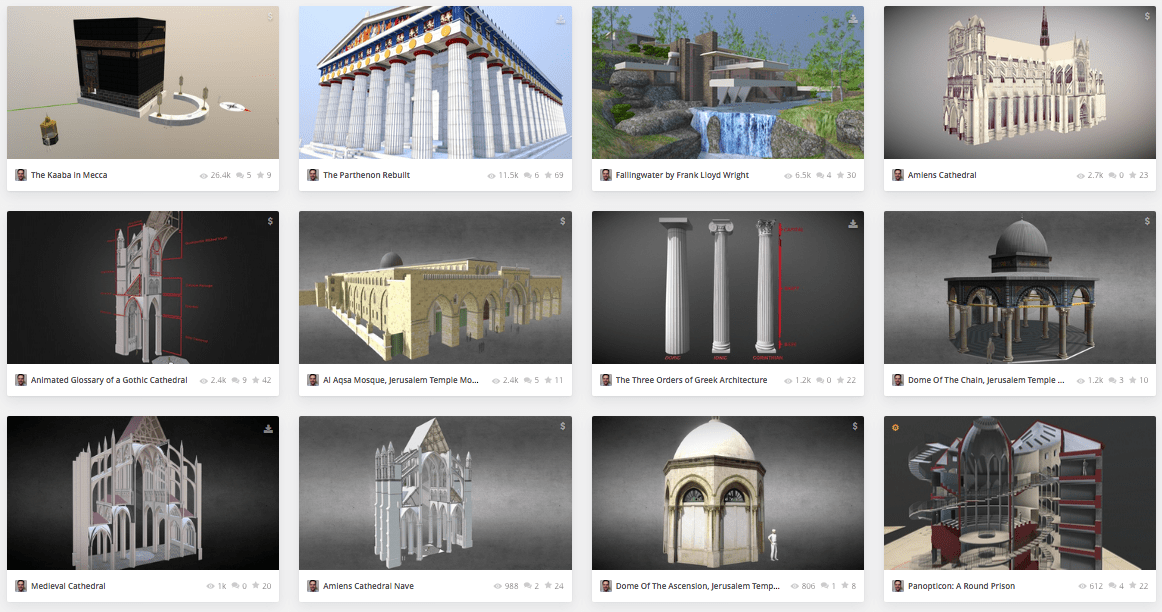

Computer Models of World Heritage

Beginning in 2016, I became involved in building interactive computer models of world architecture and heritage. Through computer modelling, there is the possibility to broaden the audience of a work of architecture beyond the small number that may actually visit the building in person. World heritage sites or buildings of cultural importance are of particular aesthetic and research value as computer models can reveal qualities of their construction and design that are otherwise invisible to the naked eye. A few of these models I created are featured below:

.



.

Amiens Cathedral in France and the Kaaba in Mecca (Saudi Arabia) are two of the most cogent examples of the technical possibilities of computer models. By building a model that is accurate to the measured foot, one can then view the building from beneath, above, or from unique angles that are otherwise impossible for the public to view in person. The view of the Kaaba from directly above is one such view that is possible to simulate through computer models, but is impossible to view from in person. This is due to religious and legal sanctions against flying above the Kaaba. The view of Amiens Cathedral from directly below is another example. The computer model strips away the layers of earth beneath the foundation, thereby suspending the cathedral in mid-air and permitting an imaginary view which, while theoretically existing, is humanly impossible to view.

These same models also allow us to strip away unnecessary or obstructive additions to better appreciate specific aesthetic qualities of the building. Such details include people, street furniture, and neighboring buildings that block certain angles of view. The Dome of the Rock and the Al-Aqsa Mosque of Jerusalem (which are surrounded by trees and ancient Roman-era walls on all sides) or Amiens Cathedral (surrounded by the medieval and mostly modern urban fabric of the city) are two examples of this phenomenon. Similarly, models permit us to restore structure to their original appearance as originally intended to be viewed by patron and mason, such as this model of the restored Parthenon.

Overall, the possibilities and applications for modelling are growing, and the state of the field today is by no means static. Future developments in computing, internet speeds, virtual reality, and photogrammetry will certainly permit further advancements in this field of technical and academic research.

.

.

A Few Theoretical Views of Architecture

.

The Kaaba from Above

.

Al-Aqsa Mosque from Beneath

.

Amiens Cathedral from Below

.

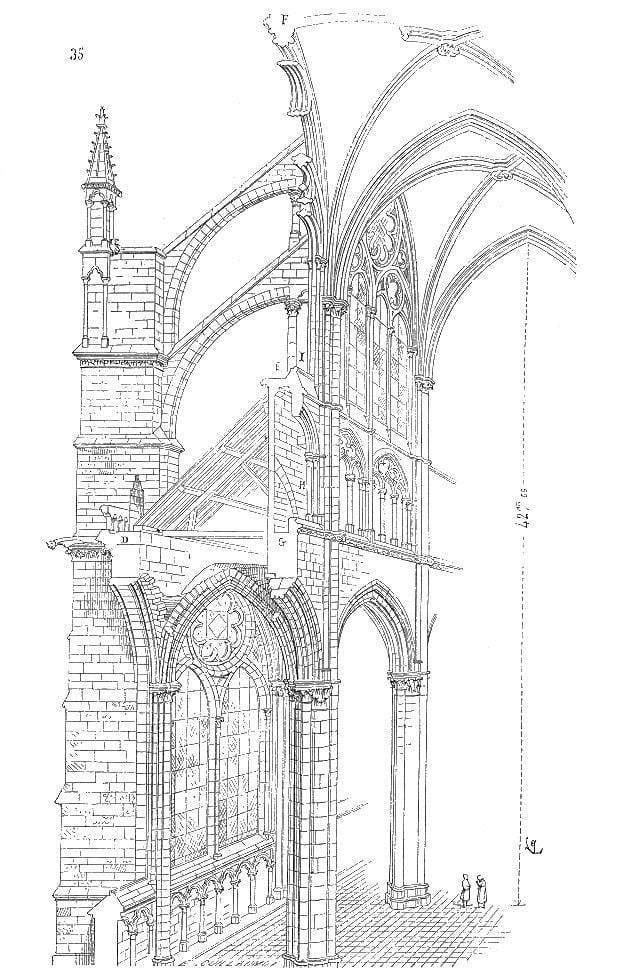

Hypothetical Cross-Section of Amiens Cathedral, based on a drawing by Eugène Viollet-le-Duc.

.



.

How to Run a Canal

The film featured below illustrates the opening and closing sequence of an early canal lock: The Duke’s Lock on the Oxford Canal.

.

.

.

“The Oxford Canal is a 78-mile (126 km) narrow canal in central England linking Oxford with Bedworth, near Coventry. Completed in stages between 1770 and 1790 during the English Industrial Revolution, it connects to the River Thames at Oxford and is integrated with the Grand Union Canal. The canal was for approximately 15 years the main canal artery of trade between the Midlands and London; it retained importance in its local county economies and that of Berkshire.

“Today the canal is frequently used in weekend and holiday narrowboat pleasure boating, as seen above with rented narrowboats passing through Duke’s Lock, No. 44.”

.

– adapted from Wiki.

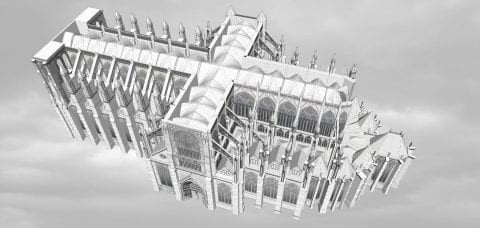

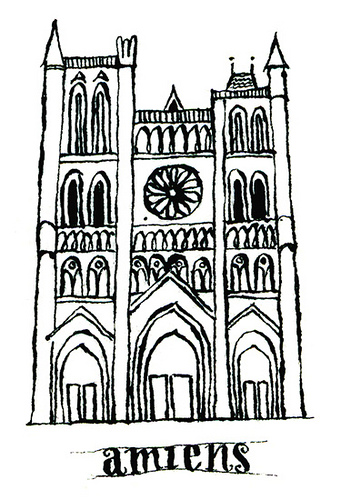

The Digital Cathedral of Amiens

.

.

.

Cross Section of Choir

Cross Section from the Southeast Side of Cathedral

.

.

.

Research Abstract

.

amiensAs the apotheosis of Gothic architecture built during the 13th century, Amiens Cathedral is a dynamic and living structure. As the ninth largest Gothic cathedral in the world and one built in relatively short span of time, Amiens Cathedral exhibits remarkable stylistic unity throughout. Alongside the Parthenon, Amiens is taught each semester to several hundred students in Art Humanities. This has been a course required since 1947 of all undergraduate students in Columbia University’s Core Curriculum. This cathedral and the animations I created are currently used in classroom instruction of 1,300 students per year.

My objective is to recreate Amiens Cathedral as it appeared in the 15th century. My method is to build an accurate computer model of the entire cathedral, accurate to the inch, photo-realistic, and fully interactive. My hope is to find new and creative ways to engage students and visitors with this work of architecture.

The final video sequence is in two parts. One, a three minute construction sequence of the cathedral’s erection between 1220 and 15th century, which has been viewed over 30,000 times on YouTube. Two, an eight minute fly-through of the finished work of art. Viewers approach the cathedral through the narrow medieval city streets and circumnavigate the exterior from bird’s eye and ground level. Viewers then enter the cathedral and are guided through the complex interior spaces. This trilogy is complemented by historically appropriate music from 13th century French composer, Pérotin and 15th century composer Josquin des Prés, who is incidentally also featured on the Music Humanities component of Columbia’s Core Curriculum.

Amiens has undergone significant revisions and the destruction of almost all its original stained glass windows and large parts of its nave. Through digital modeling, it is possible to restore the structure to its idealized appearance as its initial architect intended. Through video, we can recreate and expand the intended audience of this building, recreating digitally the experience of pilgrimage.

A building is dynamically experienced as a sequence of sights and rooms. A research text about such a building, however, can only capture a limited amount of a structure. Photography, computer simulations, and film are, by comparison, dynamic and sometimes stronger mediums to communicate the visual and engineering complexity of a building. This project seeks to capture that dynamism through a visual, auditory, and user interactive product.

Students can download this model and freely edit, revise, and explore from their personal computer. Over 3,000 students and scholars have downloaded and 3d printed this model, which was used by students at Reading University (UK) to study acoustic archaeology and various student around the world in architecture studio classes. This model of Amiens Cathedral is built with free computer modeling software called Sketchup. Sketchup has a wide range of drawing applications, architecture, interior design, and civil engineering. And, for computer modeling software, it is easy to use. With just a few commands, such as draw, pull, animate, and toggle, students and teachers unfamiliar with the program can build their own models in minutes.

Watch the two films below, followed by links to explore this model in virtual reality. I am further expanding upon this work for my senior thesis and by building computer models for Columbia’s Media Center for Art History. I have also created computer simulations for the Eiffel Tower’s construction sequence and of a small parish church in Burford, England.

This project would be impossible without the invaluable and expert guidance of my faculty mentor and medievalist Stephen Murray, who taught me in the Fall 2016 Bridge Seminar Life of a Cathedral. This project is also featured here on Columbia University’s website. My video lecture about how I created these animation is published here. This model is based on measured architectural plans from Stephen Murray in 1990 (link) and Georges Durand in 1901-03 (link).



.

.

.

.

.

.

Part One

Amiens Cathedral: A Guided tour

.

.

A guided tour of Amiens with music composed by Perotin: Viderunt Omnes, most likely composed in 1198, twenty-two years before construction started on Amiens. Viewers approach the cathedral from the west, as pilgrims would have in the Middle Ages. Viewers then circle above and through the complex system of flying buttresses that support the cathedral. The animation finishes by visualizing the cathedral from below the foundations in an abstract fashion. Starting from the concrete ground-level view of the pilgrim, the animation becomes increasingly abstract.

.

.

.

.

.

.

Part Two

Amiens Cathedral: Construction Sequence

.

.

The construction sequence of Amiens Cathedral with music by Pérotin: Beata Viscera written circa 1200. A text from Stephen Murray is transcribed below:

.

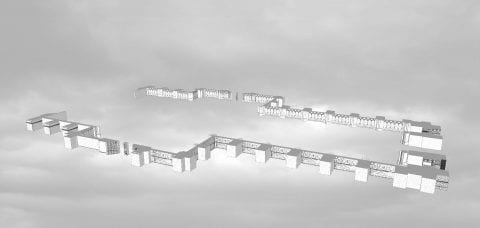

1220-c1225
Master Robert de Luzarches began work on the foundations
and lower wall. He may have been assisted by Thomas de Cormont

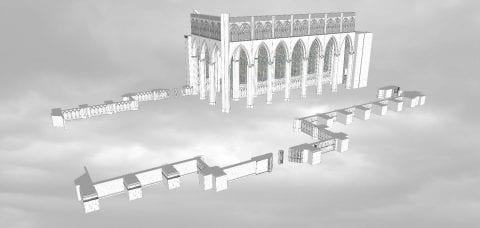

1225-30
Master Robert de Luzarches and Thomas de Cormont constructed the south nave aisle
rapidly to provide space for liturgical celebrations

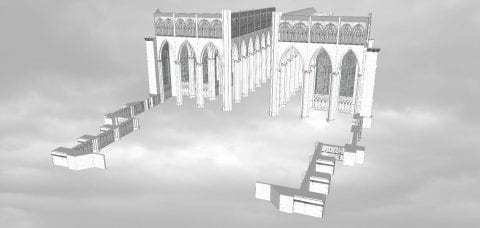

1230-1235
Master Robert de Luzarches and Thomas de Cormont built the north nave aisle
soon afterwards

1240s-c1250
Master Thomas de Cormont constructed the upper nave
and belfries of western towers

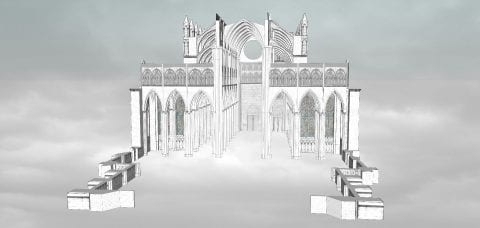

c1250
Master Thomas de Cormont died having completed the upper nave,
begun the upper transept and laid out the lower choir

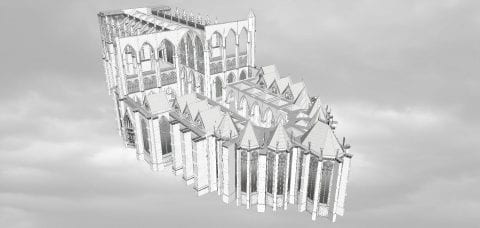

1250s-1260s
Master Renaud de Cormont completed the upper transept and upper choir. The axial
window of the choir clerestory was installed in 1269

1280s-c1310
Main roof installed from east to west

1360s-c1400
Construction of west towers

1528
Old steeple destroyed by lightning; construction of the grand clocher doré
completed c1533



.

.

.

.

.

.

Part Three

Amiens Cathedral: In Cross Section

.

.

The third video is the most abstract in the trilogy. Here, I juxtaposed interior and exterior views of the cathedral, exploring the relationship between interior and exterior spaces. The sequence opens and closes with an abstract cross section of the cathedral from below. Music is by Josquin des Prés: Mille Regretz.

.

.

.

.

.

.

.

.

.

Section from South Façade of Cathedral

Section from Above

.

.

.

.

.

.

.

.

.

The Cathedral from your Computer

An Interactive Animated Glossary of Amiens Cathedral

.

In addition to viewing digital cathedral in film, visitors can explore the cathedral for themselves in virtual reality.

Here is a model of a single bay of the nave of Amiens Cathedral, with labyrinth below. I imported actual images and textures into the model to create a photo-realistic effect. Click on individual numbers to see the names of the corresponding components of a medieval cathedral. Or orbit around this model to view from different angles. To learn more about this animated glossary of Amiens Cathedral, click here.

Please be patient while this model loads. Click and drag mouse to navigate around structure. Shift click to pan. Click the cube icon on the lower left hand corner of window to view in full screen. If you are on your tablet or smart phone, click the optical icon to view this model in virtual reality.

.

.

.

.

.

.

.

.

.

Interactive Model of the Exterior of Amiens Cathedral

.

I have uploaded just the exterior of Amiens for online viewers. Unfortunately, due to file size, it is not possible to view the entire model online. But, it is possible, to download this model to one’s computer and then edit in greater detail. Please be patient while this model loads.

.

.

.

.

.

.

Section of the Nave Roof

Section of West Façade

.

.

.

.

.

.

.

.

.

The Exterior Sequence

.

Below are a few film stills taken from the animation sequence of Amiens Cathedral’s exterior. Hover over image to display caption. Click thumbnail to view high resolution image in gallery.

South Side of Choir

The Buttresses and Rear of West Façade

Amiens Cathedral from Above

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

The Interior Sequence

.

Film stills of Amien’s interior. Hover over image to display caption. Click thumbnail to view full size in gallery. Gallery is organized linearly to evoke the sequence of walking through the interior spaces.

The Nave at Amiens, looking toward the choir.

Nave Aisles

Clerestory Level of Apse

Bracing and Joists Supporting the Roof

.

.

.

.

.

.

.

.

.

Dynamic Angles

.

Computer modeling allows one to explore angles of view not possible in reality. Of particular beauty are the view of Amiens from below. With the layers of earth and foundation removed, one looks up the grid of vaults and the forest of columns. The view is simultaneously a plan of the cathedral and a worm’s eye view, simultaneously of a real cathedral and an imagined world.

.

.

.

.

.

.

.

.

.

Cross Sections

.

.

Development of the Gothic Cathedral: An Evolution

.

Amiens is at an apex in the development of Gothic cathedrals. The earliest cathedrals were modeled after Roman basilicas with two narrow aisles on either side of a long, rectangular open space spanned with wood trusses. This is best exemplified in the plan of Old Saint Peter’s Basilica in Rome. Later Gothic cathedrals in following centuries modified this simple model. The dimensions and height of the cathedral grew, alongside the complexity of its vaults, columns, and ornaments. In short, the form and floor plan of the medieval cathedral evolved in response to changes in the use of the church and the rituals of the Mass.

Below are two animated videos illustrating the evolution of the Gothic cathedral: In cross section at left and in plan at right.

.

Development of a cathedral nave from Early Christian to High Gothic. A process of evolution and synthesis.

Development of the cathedral floor-plan over 1,000 years. Animation courtesy of Columbia University.

.

.

.

.

.

Many Thanks

This project would not have been possible without the generous help and expertise of Professor Stephen Murray at Columbia University’s Department of Art History & Archaeology. I am also indebted to Center for Career Education for funding this project through its Work Exemption Program. This project was inspired by a similar video trilogy from the 1990s about Amiens Cathedral: Revelations.

.

.

.

Rome: The Eternal City

Roma, te amo

Roma, te amo, labeledFor a labeled map of Rome, click on the image above.



Rome, the Eternal City, the city of a thousand jeweled churches. Each church a treasure trove of glistening gold and baroque drapery cascading over its roof and walls. Each street a channel to and from some unexpected street side treasure: A Roman coffin turned public fountain, a marble column turned city wall, or a dark alley where the sound of water drips eternal.

Rome is the city of reinvention with each subsequent structure built on the physical and symbolic history of Greece, Rome, the Middle Ages, and then the Renaissance and modern era. Physicist Isaac Newton once proclaimed that: “If I have seen further, it is by standing on the shoulders of giants.” Rome too can remind herself that: If I stand more powerful and majestic, it is not thanks to current accomplishment but to the bedrock of history that accumulates treasures through time and value through age. Rome too stands “on the shoulders of giants:” The Roman Empire gave Rome her aqueducts and temples, the Renaissance gave Rome her churches, and the hand of Mussolini gave Rome her fascist monuments and boulevards sliced through the urban core.

Despite being grounded in history, Rome is very much a city of the present. The human fabric of this city may have left the urban core with waves of gentrification and tourism, but the spirit of a living and breathing city endures. North African immigrants peddle their umbrellas and selfie-sticks in the shadows of the Coliseum. Mass with the Pope continues in Saint Peter’s beneath Michelangelo’s majestic dome. Tourists may come and go. Time may pass. But, the Eternal City will endure and evolve.

When I returned home, I painted a map of Rome from memory (seen above). The streets of the city radiate from its center. When I gaze at this map, framed in my room, I am reminded of the generations of architects who passed before me. And, I wonder in what way will I contribute to this architectural legacy, adding the language of my structures to that of generations before me. Rome still appears in my dreams, when I walk through the city streets on the cobblestone path that guides me forward. When I awake, I have an image in my mind of where I traveled. I dream and envision paths and cities, unbounded by the limits of reality.







Pantheon Facade




 Rome: The Eternal City










Detroit: Year Zero

Detroit is living misery. It is the very antithesis of urbanization and a victim of America’s senseless auto culture. Thousands of homes lie vacant and decaying. Copious infrastructure built to serve millions serves only thousands. Highways slashed through decaying neighborhoods serve a city devoid of life in many parts. Downtown is a skyscraper graveyard full of empty storefronts and a labyrinth of rotting art deco architectural gems.

During WWII, Detroit was dubbed “the arsenal of democracy” for all the military equipment it rolled out. Planes from Detroit went on to bomb European cities (like Dresden) to smithereens. In a form of fitting, yet ironic, justice Detroit has been bombed to smithereens. Except this time, it isn’t a B-27 doing the dirty destruction, it’s a culture of decay and the very society that erected this metropolis.

After Detroit’s 1967 Riots, over 200,000 whites fled Detroit for good. They left behind a racially divided city. They wiped their hands clean of decades of corruption and let the “blacks manage themselves.” White corruption became black corruption. Out with the old rascals and in with the new. And the birthplace of the automobile plummets ever lower.

Attempts to rectify Detroit’s fallen stature make a mockery of progress. An empty monorail endlessly circles a downtown devoid of life. Renaissance Center soars above downtown, secluded from the helpless city. Renaissance Center is a corporate Death Star accessible only by car. The ominous Greektown Casino abuts the city jail. Whites commute to Detroit for sports games at Comerica Field and then flee afterwards. Everywhere there is parking, parking, parking . . . Detroit billionaire Dan Gilbert even proposed creating a demolition countdown clock that listed the number of vacant buildings to be demolished.

Detroit is a failure on countless levels. It represents the failure of government to stem the victorious forces of suburbanization and cars. It represents the failure of short-sighted planning and American industrial might. It represents the failure of democracy to level the playing field of racial divides. De facto segregated Detroit has become de jure segregated Detroit. Detroit is by all means a failure. Then and again, the forces causing the downfall of this metropolis are just as guilty. Government. The free-market. The auto industry. Capitalism.

Detroit’s Latin motto is: “Speramus Meliora; Resurget Cineribus.”

We Hope For Better Things; It Shall Rise From the Ashes.

New Jersey Meadowlands

The meadowlands, nestled between New York City and Newark, is a strange sort of interstitial zone. It belongs to neither nature nor to man. The grasslands and birds of nature are abundant. Yet, so are the derelict factories and warehouses of yesteryear. The unwanted detritus of civilization is cast off into the meadowlands, ranging from garbage to industry.

Through this region of indeterminate identity pass millions of commuters on their way to and from work. Many look out the windows of passing trains, planes, and cars. Yet few care to observe the lapping tides and bizarre beauty of this unwanted strip of land. The views below are drawn from memory. They show various scenes from my daily train ride on NJ Transit between Newark Broad Street and Hoboken Terminal.

Cable Car City

A small, San Francisco style cable car passes through my colorful city of brick buildings and ornate street lamps. With a flick of the wrist and a light tug on a string, I can set the two cable cars in motion back and forth down a cobble stone street. This model measures one feet wide by four feet length and is made entirely of wood and colored paper.



Space Age Imagery

When I gaze at the night sky, I wonder, “What does that infinite darkness contain?” I imagine a plethora of other worlds I can only dream of. I see worlds where gravity and inertia vanishes. I see worlds devoid of directions and natural geometry. It is a world of my own fabrication, superimposed over the pitch black sky. While I cannot visit such a place, I can still put image to paper.

.

Chirico
